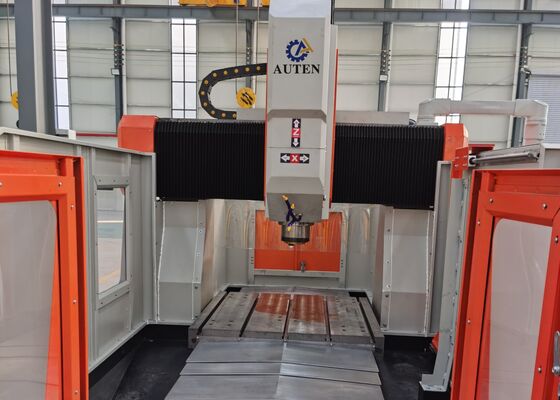

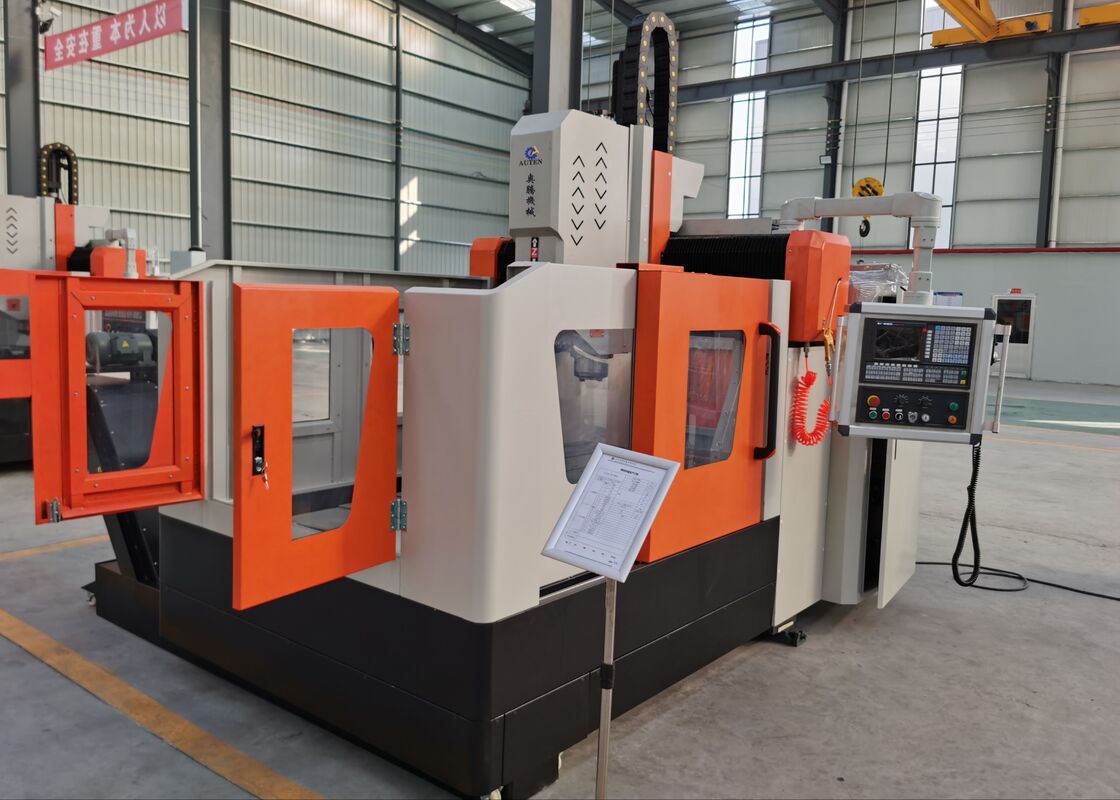

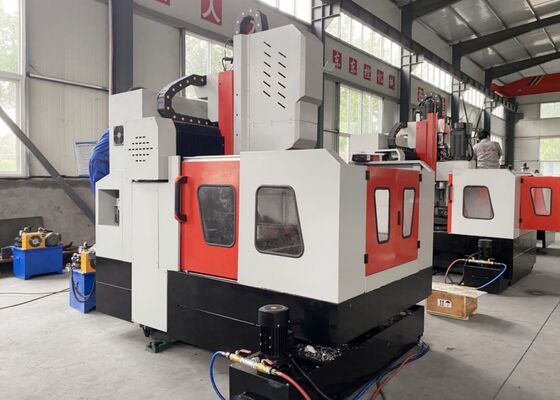

Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine ≤180mm Drill Thickness

Model PHD1010 Fixed Worktable CNC Drilling Milling Tapping Machine ≤180mm Drill Thickness

Product Introduction:

The machine is primarily engineered for drilling tube sheet plates and flanges, accommodating hole diameters up to φ80mm. Its core capabilities include drilling, reaming, boring, tapping, chamfering, and milling. It is compatible with both carbide and standard drill bits. The CNC control system is intuitive, ensuring ease of operation. The machine consistently delivers outstanding accuracy and performance.

Product configuration:

Product Features

1. The machine frame and crossbeam are fabricated from welded steel structures and undergo comprehensive aging heat treatment to ensure high precision. The worktable, transverse sliding table, and ram are constructed from cast iron, providing enhanced durability and structural stability.

2. The dual servo drive system on both sides of the X-axis ensures precise and synchronized movement of the gantry, maintaining excellent squareness between the Y and X axes.

3. The worktable is manufactured from cast iron, ensuring stable and dependable performance.

4. The drilling spindle is a rigid, high-precision BT40 type, equipped with an internal cooling system for efficient operation and convenient tool changes. The spindle operates at speeds ranging from 30 to 3000 rpm.

5. Two plate-chain type scrap removal systems are installed on either side of the worktable. These systems collect both scrap and coolant, enabling efficient recycling of the cooling fluid.

6. The machine is equipped with dual cooling systems—internal and external—both providing adequate pressure and flow. It also incorporates coolant level monitoring devices to ensure proper lubrication and cooling of the drilling tools.

7. The machine features an automatic lubrication system that supplies consistent and reliable lubrication to critical moving components, including the guide rails, ball screws, and roller bearings, thereby prolonging the service life of these essential parts.

8. The CNC control system is the 828D model, providing comprehensive functionality, automatic CAD-CAM programming, intuitive operation, as well as automatic alerts and error compensation.

9. The machine incorporates critical components sourced from globally recognized brands, including linear roller guide rails, ball screws, servo motors and drivers, the spindle, CNC control system, hydraulic pumps, valves, and cooling pumps. This ensures outstanding reliability and stable operational performance.

The CNC gantry plate cutting machine is a durable industrial system, carefully designed for accurate machining of plate-shaped components and structural elements. It is specifically configured to handle workpieces such as flanges, discs, rings, and flat plates, provided that the material thickness falls within the machine’s specified effective machining range.

In steel structure manufacturing facilities, this plate drilling machine performs precise drilling and milling operations on structural plates and connecting elements, providing a reliable foundation for the assembly of robust steel frameworks. Within the wind energy industry, it delivers high-accuracy machining for wind turbine towers and flanges—critical processes that ensure these components can endure harsh environmental conditions, including strong winds and temperature variations. In bridge construction applications, the machine processes bridge girders and supports, facilitating the creation of stable and durable connections capable of withstanding dynamic loads throughout the bridge’s service life.
