การผลิตคุณภาพสูงสุดของประเทศจีนสำหรับการเจาะ CNC, การเจาะ, การตัด, การกัด, การขึ้นรูปเครื่องของมุม, คาน, แผ่นและครีบ!
ทำใหม่ ทำดี !
|
|
รายละเอียดสินค้า:
การชำระเงิน:
|
| การทำงาน: | การต่อยการทำเครื่องหมายการตัด | ขนาดมุม （มม.): | ∟40× 40 × 3 ～∟140 × 140 × 12 |
|---|---|---|---|
| สูงสุด ความยาวของว่างเปล่า (M): | 12 | สูงสุด ความยาวของเสร็จแล้ว (M): | 10 |
| สูงสุด Punching (dia. х thi.) (มม.): | φ26× 12 （วัสดุ： Q345 510N/mm2) | ต่อยต่อด้าน: | 2 |
| แรงเจาะ (kN): | 630 | แรงทำเครื่องหมาย (kN): | 630 |
| แรงตัด (kN): | 1800 |
Model JNC1412 CNC Angle Metal Punching Marking And Shearing Machine 1800KN Cutting Force
Applicable Industry:
This machine is a purpose-engineered specialized device developed to perform angle steel punching, marking, and shearing operations. It is specifically tailored to address the core processing requirements of the angle steel tower industry, ensuring precise and efficient handling of angle steel components critical to tower manufacturing.
Specifications:
| Functions | Punching, marking, cutting |
| Angle size(mm) | ∟40×40×3～∟140×140×12 |
| Max. length of blank (m) | 12 |
| Max. length of finished (m) | 10 |
| Max. Punching (dia. х thi.) (mm) | Φ26×12(Material:Q345 510N/mm2) |
| Punches per side | 2 |
| Punching force (kN) | 630 |
| Marking force (kN) | 630 |
|
Cutting force (kN) |
1800 |
| Group of Marking letters | 4 |
| Number of letters per group | 12 |
| Dimension of letter (mm) | 14×10×19 |
| Cutting mode | Single blade cutting |
| CNC axes | 3 |
| Feeding speed of angle (m/min) | 80 |
| Cooling method of hydraulic system | Water cooling |
| Processing precision | Accordance with GB2694 |
| Program function | Input by keyboard and USB interface |
| Dimension(mm) | 28000×6500×2200 |
Product Composition:

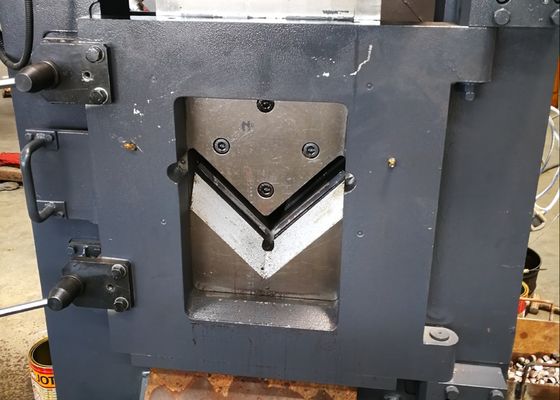

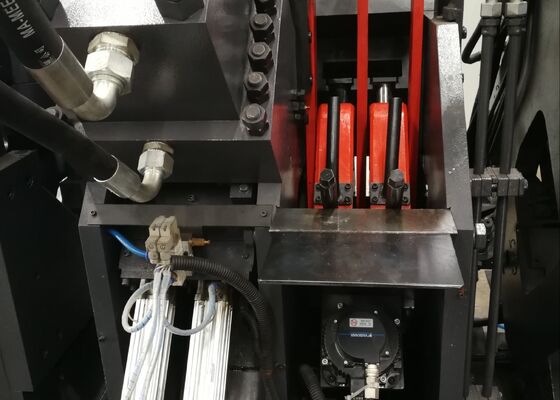

This equipment is primarily composed of a transverse conveying system, rotary loading mechanism, infeed conveyor, CNC feeding carriage, punching unit, marking unit, cutting unit, and discharge conveyor, as well as hydraulic, electrical, and pneumatic systems and other auxiliary components.
Product Features:
1. The system adopts CNC technology combined with servo-driven feeding, ensuring high production efficiency and consistent machining accuracy. All critical hydraulic, pneumatic, and electrical components are sourced from internationally recognized brands.
2. Each side is equipped with three sets of punch and die assemblies, capable of accommodating three different punch diameters. Under PLC control, the three die groups can move in synchronization to adjust the punching datum position.
3. The industrial computer features a bilingual Chinese-English interface, providing intuitive and operator-friendly control while supporting graphical workpiece display. Programming is simplified, and the system can directly import data generated by nesting or lofting software. During programming, only parameters such as workpiece dimensions, hole diameter, reference point, and production quantity are required.
4. The CNC feeding carriage is driven by a servo motor, with positional feedback provided by a photoelectric encoder. A closed-loop control system is implemented to ensure high positioning accuracy and stable feeding performance.
5. Marking, punching, and shearing operations are fully automated. Completed angle steel components can be automatically discharged via a pneumatic turnover device, significantly reducing manual labor requirements.
6. The control system consists of an industrial host computer, CNC controller, servo drive system, PLC unit, and external sensing devices. Operation is initiated simply by entering workpiece parameters. In addition, processing programs can be stored, selected, displayed, and transmitted based on workpiece identification numbers.
7. The marking unit adopts a fully enclosed frame structure, providing excellent rigidity and structural stability. Four sets of character assemblies are installed on the marking head and can be selected through program control. The marking reference position can be freely defined. The punching, marking, and shearing cylinders are designed with increased capacity; the CNC carriage has been upgraded for higher rigidity; and the clamping system features reinforced structural strength.
These sample workpieces, covering standard specifications and typical processing applications in the angle steel tower industry, enable users to directly evaluate machining accuracy, processing quality, and manufacturing workmanship. They serve as a practical reference for assessing equipment performance and its suitability for specific production requirements.

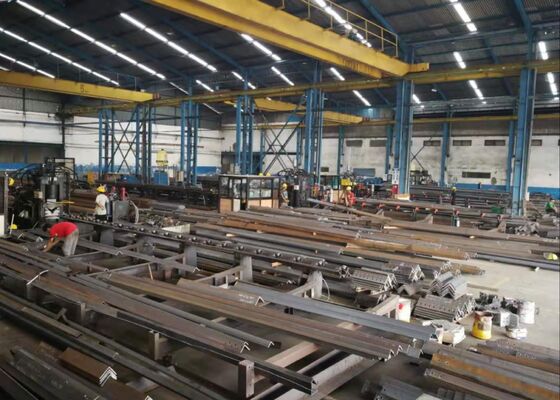

In ultra-high-voltage (UHV) transmission line construction—where towers must withstand severe weather conditions and heavy structural loads—this equipment plays an essential role in processing the angle steel components that form the primary structural framework of the towers. It efficiently performs drilling and punching operations on angle steel used in tower bodies, cross-arms, and other critical structural parts, ensuring precise dimensional control and reliable joint strength, thereby maintaining the overall structural stability and safety of the transmission towers.
