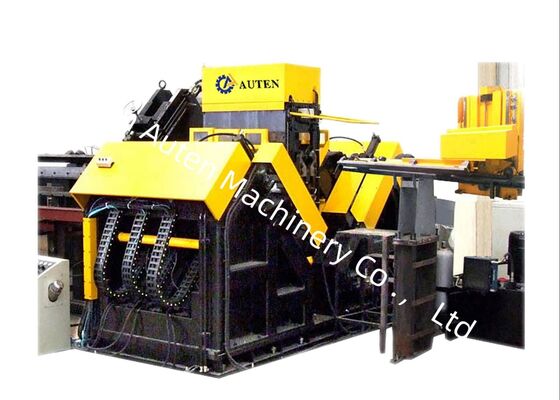

34*8.9*3m Overall Dimension Tower Construction CNC Angle Steel Drilling Machine Steel Processing
Product Usage:
The production line is suitable for power tower,communication,steel structure bar marking and drilling.
Product structure characteristics:
The machine is mainly composed of lateral feed table,overturn feeding,feed channel,CNC trlley marking,typing unit,drilling unit,press unit,finished material channel,hydraulic system,pneumatic system,control system and so on.
Main Parameters:
| Model | ADM3635 |
| Angle size (mm) | 100×100×10~360×360×35 |
| Max. length of blank(m) | 14 |
| Taper of drilling spindle | BT40 |
| Max. Drilling diameter (mm) | Ф40 |
| Qty. of drill on each side (pcs) | 3 (6 in total on both side) |
| Max.spindle rotation speed (r/min) | 6000 |
| Max.cutting speed of drill (m/min) | 200 |
| CNC axes | 9 |
| Range of back mark (mm) | 50-330 (stepless) |
| Max. angle feeding speed (m/min) | 40 |
| Marking force (kN) | 1000/1200 |
| Qty. of character group | 4 |
| Qty. of character in each group | 18 |
| Character size(mm) | 14×10×19 |
| Drill bit cooling system | Air atomization dry internal cooling |
| Programming mode | Lofting software or instruction programming |
| Overall dimensions (m) | 34×8.9×3 |
Product Features:
1. The use of numerical control technology,servo motor feeding,high efficiency,stable operation.
2. Key hydraulic,pneumatic,electrical components all use of domestic and international famous brand.
3. Programming simple program data and can be used directly lofting software generated.
4. Poftware for the English interface,easy to operate,can display the working graphics.
5. Feeding,marking,drilling,and unloading are automatically carried out.
6. Simply input the workpiece size.hole distance.stadia.the number of jobs.work procedures or directly using the CAD/CAM software to generate the lofting.
7. The machine have material support and vertical pressing device can adapt to bent angle.
8. With no cutting function,you can set the size of the material.
9. Fault self diagnosis function.
10. The user can choose to add the shear unit,and the shear unit is a double edge shear.
These specimens encompass a wide range of standard specifications and hole configurations of angle steel utilized in the construction of transmission line towers. They allow prospective users or inspectors to visually assess the equipment's functional performance, offering concrete and intuitive references to evaluate whether the equipment aligns with the practical manufacturing requirements for transmission line tower production.

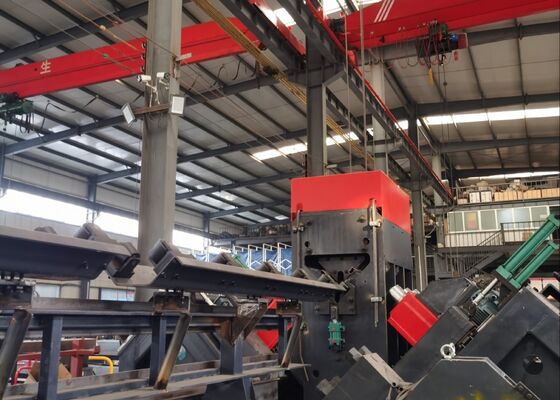

In the construction of ultra-high voltage (UHV) transmission lines, where transmission towers must endure severe weather conditions and substantial loads, this equipment plays a vital role in processing angle steel components for the towers’ primary load-bearing structures. It efficiently conducts drilling and stamping operations on the angle steel used in tower bodies, cross-arms, and other critical structural elements, ensuring precise dimensional accuracy and dependable connection performance. This, in turn, guarantees the overall structural integrity of the transmission towers throughout their entire operational lifespan.
