รายละเอียดสินค้า:
การชำระเงิน:
|
| Function: | Drilling | Max. Size Width x Height: | 700×500mm |
|---|---|---|---|
| Min. Size Width x Height: | 100×100mm | Beam Length: | 2000～12200mm |
| Main spindle model: | BT40 | Motor power: | 11kw |
| Spindle speed: | 100～3000 r/min | Hole diameter: | φ5～φ30 mm |

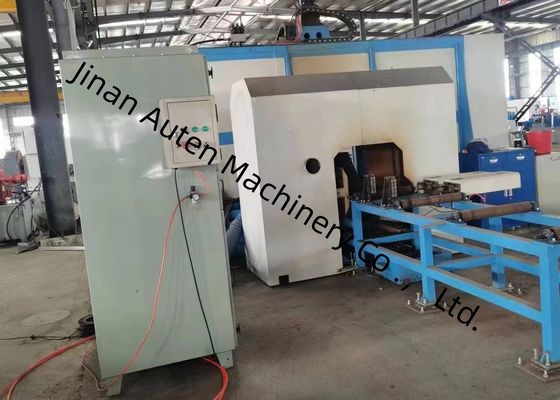

Model BHD700 High Speed CNC H Beam Drilling Machine 33x5.5x3.3m Machine Size Total 52kw Power
Application industry:
This machine tool is primarily dedicated to drilling operations on H-shaped steel. It employs three high-speed precision drilling spindles for workpiece drilling, featuring high machining accuracy and user-friendly operation. As an indispensable high-efficiency equipment in the steel structure industry, it is widely applied in construction, bridges, tower masts, grids, and other related sectors.

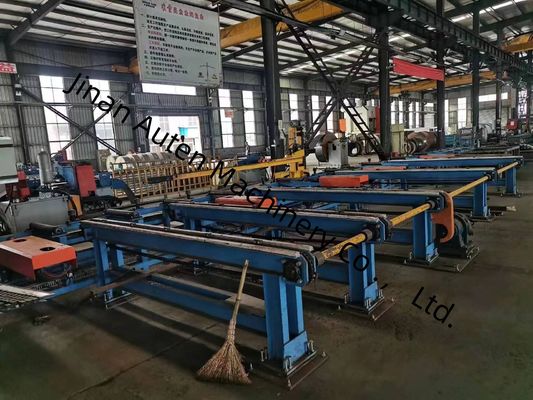

Infeeding conveyor:
It is composed of conveyor support, supporting roller, side positioning roller, side pushing device and rack, etc. The feeding channel is used to carry the workpiece to be processed, and a photoelectric switch is installed at the front end of the material channel to detect the front end of the workpiece and determine the processing datum in the X direction. The side pushing device presses the workpiece tightly and leans against the side positioning roller to realize the rough positioning of the workpiece in the Y direction.
Infeeding NC carriage:
It is composed of gears, servo motors and manipulators. The manipulator has good rigidity and stability, can automatically rise and fall according to the profile specifications, and automatically clamp the workpiece. After the manipulator clamps the workpiece, it is driven by the servo motor. Under the transmission of the rack and pinion, the workpiece is fed in the X direction to ensure the longitudinal machining accuracy of the drilling.
Out-feeding conveyor:
It is composed of conveyor support, supporting roller, etc. The supporting roller is used to carry the finished workpiece.
Specifications:
| H beam parameter | Max. Size Width x Height | 700×500mm | |
| Min. Size Width x Height | 100×100mm | ||
| Beam Length | 2000～12200mm | ||
| Main spindle | Qty. | 3 | |
| Model | BT40 | ||
| Motor power | 11 kW | ||
| Spindle speed | 100～3000 r/min | ||
| Hole diameter | φ5～φ30 mm | ||
| CNC axis | Servo motor power of X axis | About 5 kW | |
| Servo motor power of horizontal drilling positioning axis | About 1.5 kW | ||
| Servo motor power of vertical drilling positioning axis | About 3 kW | ||
| Servo motor of drilling infeeding | About 2 kW | ||
| Tool magazine | Qty. | 3 | |
| Type | Row style | ||
| Tool magazine capacity | 4 x 3 | ||
| Processing Accuracy | Hole distance deviation | Two holes within 1 meter | ±0.5 |
| The allowable deviation value increases by ±0.2mm for every additional 1 meter of the hole distance, and the maximum does not exceed ±2mm | |||
| End margin deviation | ±1.0 mm | ||
| Machine size | About 33x5.5x3.3m | ||
