การผลิตคุณภาพสูงสุดของประเทศจีนสำหรับการเจาะ CNC, การเจาะ, การตัด, การกัด, การขึ้นรูปเครื่องของมุม, คาน, แผ่นและครีบ!
ทำใหม่ ทำดี !
|
รายละเอียดสินค้า:
การชำระเงิน:
|
| สูงสุด ความกว้างของแผ่นประมวลผล: | 1,000มม | การประมวลผลความหนาของแผ่น: | 2-100 มม. |
|---|---|---|---|
| ความยาวแผ่นการประมวลผล: | 100 มม.~∞ | นาที. ชิ้นงาน: | 50x50x2มม |
| Max. สูงสุด Loading Capacity กำลังโหลด: | 500กก | กำลังเครื่องจักร: | 28kW |
| ฟีดมอเตอร์: | 2 | ความเร็วในการให้อาหาร: | 10~4000 มม./นาที |
| เน้น: | steel structure fabrication machine,metal plate polishing equipment,CNC plate punching machine with warranty |
||

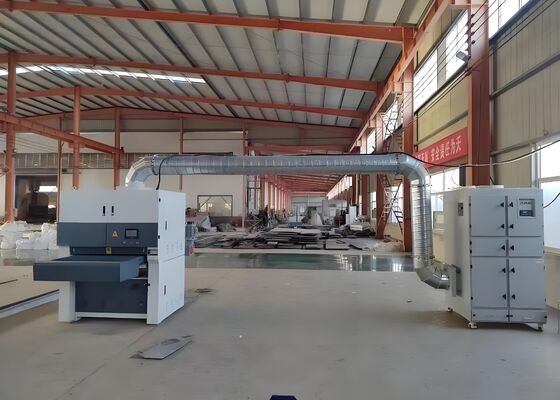

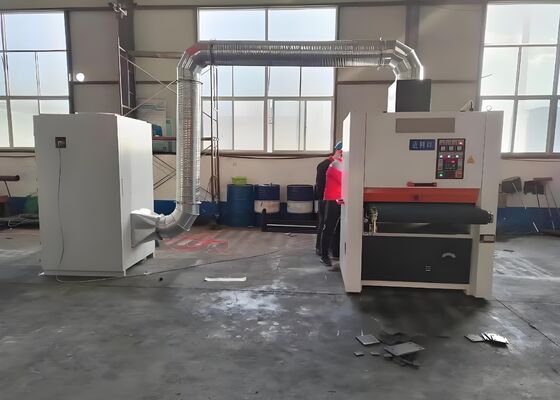

Steel Structure Fabrication Equipment Metal Plate Polishing Machine Transmission Tower Manufacturing
Equipment Purpose:
The plate polishing machine is specifically designed for the refinement of metal plates that have undergone laser cutting or plasma cutting procedures. Its main purpose is to improve the surface quality of these plates by removing burrs, rough edges, and other imperfections left by the cutting process. This ensures the plates attain a smooth, polished, and uniform surface finish, thereby enhancing both their visual appeal and functional performance, making them ideal for a broad spectrum of applications.
Product Configuration:
| No. | Model | BP1000 |
| 1 | Max. processing plate width | 1000mm |
| 2 | Processing plate thickness | 2-100mm |
| 3 | Processing plate length | 100mm～∞ |
| 4 | Min. workpiece | 50x50x2mm |
| 5 | Max. loading capacity | 500kgs |
| 6 | Machine power | 28KW |
| 7 | Feed motor | 2 |
| 8 | Feeding speed | 10～4000 mm/min |
| 9 | Abrasive belt deburring slag, burrs | Height less than 1.5mm |
| 10 | Cartridge dust collector | 5.5KW |
| 11 | Cartridge dust collector size | 1000x1000x2100mm |
| 12 | Machine dimensions | 2450x1700x2150mm |
Application Industries:
This type of polishing machine is widely employed in industries where exceptional metal surface quality is essential. It finds extensive application in the production of electric power transmission towers, communication towers, power fittings, steel frameworks, storage racks, and similar products. These industries depend on polished metal plates to guarantee the structural integrity, aesthetic value, and long-term durability of their products.
Equipment Features:
1. Automatic Continuous Feeding:
The machine is equipped with an automatic continuous feeding system that supports plates of unlimited length. This feature enhances production efficiency by facilitating uninterrupted material processing, thus helping to lower overall manufacturing costs. It ensures smooth and consistent operation, making it particularly suited for high-volume production environments.
2. CNC Control:
The machine integrates a CNC control system, ensuring precise and consistent processing of the plates. Real-time transmission of operational data and status updates provides operators with instant feedback, guaranteeing smooth and error-free performance. This functionality optimizes control and monitoring processes, making the management of the production line more efficient and straightforward.
3. CNC PLC and Touch Screen Control:
The system integrates a CNC PLC (Programmable Logic Controller) alongside a user-friendly touch screen interface. Operators can easily start and stop the machine with a simple touch, streamlining the operational process. The intuitive design of the control system ensures user-friendliness and requires minimal maintenance, enabling staff to operate the machine with minimal training.
4. Pneumatic Tensioning Device:
The polishing machine is equipped with a pneumatic tensioning system that ensures consistent and reliable operation. This mechanism precisely regulates the tension of the abrasive belt, extending its service life and maintaining optimal polishing performance. It ensures the belt stays properly aligned during operation, minimizing wear that could adversely affect the quality of the polishing outcome.
5. Simple, Safe, and Efficient Operation:
The machine is designed for ease of use and low-maintenance operation. Its intuitive control system guarantees a high degree of safety and reliability, significantly reducing the risk of operational errors. Additionally, the machine is optimized to maximize production efficiency, ensuring smooth and continuous operations, minimizing downtime, and improving overall throughput.
A plate polishing machine is specifically designed to refine metal plates that have been processed through laser or plasma cutting techniques. These machines are built to smooth and improve the surface quality of the plates, effectively removing burrs, rough edges, and oxidation marks resulting from the cutting processes. By providing an exceptional finish, plate polishing machines not only enhance the aesthetic appeal of the plates but also optimize their functionality in subsequent operations or applications. This type of equipment is widely used in industries such as metal fabrication, manufacturing, and automotive, where precision and surface quality are critical.
