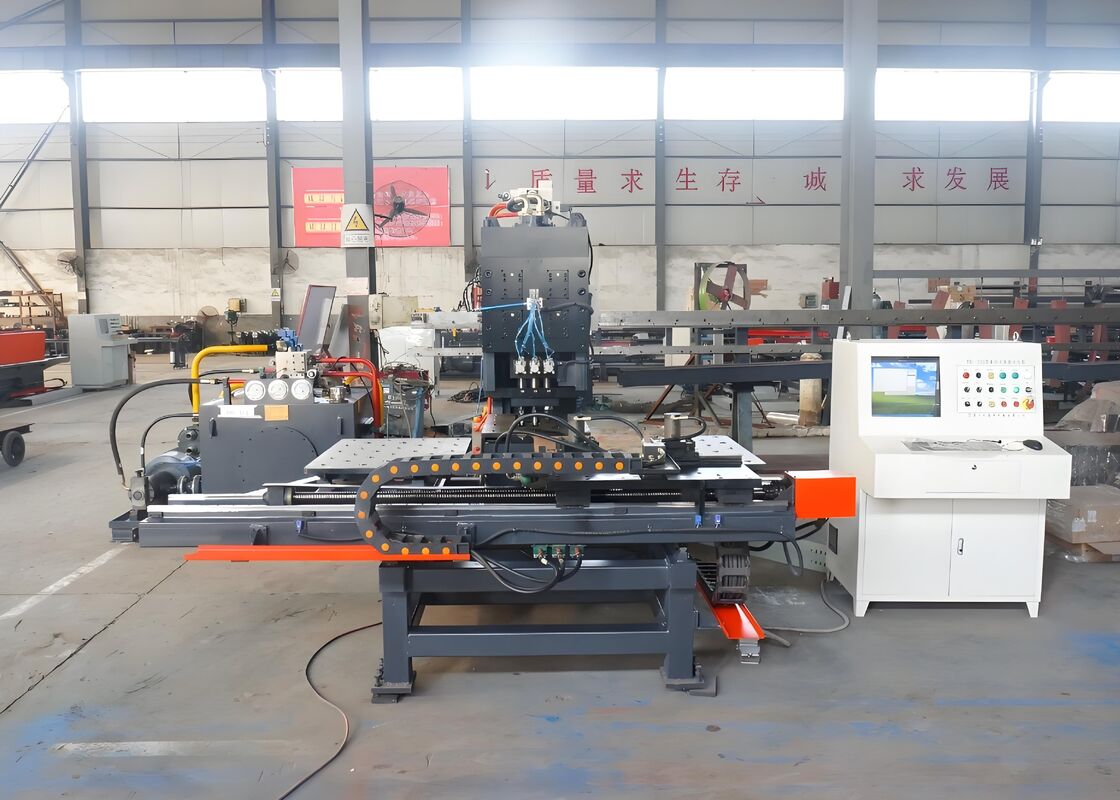

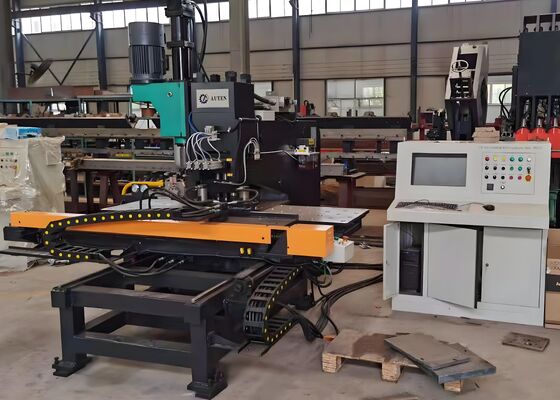

800/1000KN Marking Force Plate Drilling Punching Machine 50mm Drilling Diameter
Applicable industry:
The CNC plate punching and drilling machine is specifically engineered for punching, marking, and drilling operations on steel plates within the steel tower manufacturing industry. Additionally, it boasts extensive applicability in executing punching, drilling, and marking processes on metal plates across a diverse range of other industrial sectors.
Specifications:
| Model | BNC100 | BNCZ100 | BNHD120 | |||
| Max size of work piece (mm) | 1500×800 | |||||
| Max. punching diameter (mm) | Φ26 | |||||
| Max. drilling diameter (mm) | / | Φ50 | ||||
| Taper of drilling spindle | / | / | BT50 | |||
| Plate thickness (mm) | Punching | 5～25 (Q235) | ||||
| Drilling | / | 40 | ||||
| Punching force (kN) | 1000/ 1200 | |||||
| Marking force (kN) | 800/ 1000 | |||||
| Min. distance between hole and plate edge (mm) | Punching | 25 | ||||
| Drilling | / | Depends on hole diameter | ||||
| Character size(mm) | 14×10×19 | |||||
| Qty. of character | 12 | |||||
| Die-stations | 3 | 4 | ||||
| Feeding speed of drilling (mm/min) | / | 25~280 | 0~5000 | |||
| Stroke of drilling spindle(mm) | / | 180 | 350 | |||
| Rotation speed of drilling spindle(r/min) | / | 120~560 | 30~3000 | |||
| Programming mode |
Command programming, Auto CAD drawing or layout software |
|||||
| Overall dimensions L×W×H (m) | 3.2×3×1.9 | 3.2×3×2.6 | 3.3×3.2×3 | |||
Product feature:
1. The frame of the CNC channel steel punching and marking machine is fabricated through C-type plate welding, delivering exceptional structural rigidity and generous operational clearance. Outfitted with three die stations (one dedicated exclusively to marking functions), the equipment enables automatic die station indexing to optimize workflow efficiency. Its clamping system features versatile compatibility with a wide array of workpieces, adopting a zero-reference baffle as the positioning datum, while the workpiece is supported by a ball-bearing worktable to ensure seamless handling. X and Y axis movements are powered by servo motors and transmitted via high-precision ball screws, with a Programmable Logic Controller (PLC) regulating punching position calibration—thereby achieving full automation of the entire machining process. Once the operator inputs the workpiece program, it can be stored, retrieved, and repeatedly deployed for cyclic production operations.
2. The CNC steel drilling machine incorporates advanced Computer Numerical Control (CNC) technology and servo motor-driven feed systems, guaranteeing exceptional operational efficiency and consistent workpiece precision.
3. Key functional components adopt a modular configuration, facilitating convenient maintenance and streamlined repair workflows.
4. The CNC metal plate punching and marking machine enables the integration of punching, marking, and drilling operations on a single metal plate, achieving multi-process consolidation within a single operational cycle.
5. The drilling unit integrates core functional capabilities including rapid descent, precision feed during machining, and swift retraction—all of which substantially enhance operational efficiency in real-world application scenarios.
6. Furnished with an intelligent fault self-diagnostic system, the equipment enables timely detection of operational anomalies, facilitating proactive maintenance interventions and ensuring uninterrupted stability of production processes.
7. The programming workflow is meticulously designed with user-centric usability at its core: operators can input hole diameters, hole position coordinates, and workpiece batch quantities directly into the control system. Additionally, the system supports the deployment of programs generated by professional lofting software, or enables direct CAD/CAM file conversion to ensure seamless and efficient program execution.
Machine details:
This professional metal processing equipment is primarily engineered for punching, marking, and drilling operations on steel plates within the steel tower manufacturing sector. It delivers exceptional machining precision, complying with rigorous tolerance requirements and surface finish standards. Beyond the steel tower industry, this multi-functional system also provides reliable punching, drilling, and marking solutions for metal plates across a diverse spectrum of industrial fields. It maintains consistent operational efficiency and processing accuracy for all types of metal workpieces, thereby optimizing workflow productivity and enhancing product quality across various industrial applications.
